Delios Front Brake Upgrade Kit l 2nd Gen 89 - 95
Delios Front Brake Upgrade Kit l 2nd Gen 89 - 95
Couldn't load pickup availability
- 5,000+ PARTS SOLD
- 1 Year Warranty
- 30 Day Returns
- Upgraded rotors and MK3 pads in one convenient kit
- Vented 291mm rotors with Protekt coating resist rust
- Symmetrical mould technology surpasses OE rotor spec
- Improved bite, release control, and longer component life
MORE DETAILS
MORE DETAILS
Designed to be the leading OE replacement rotor in the automotive aftermarket. Utilizing Symmetrical mould technology, each casting is designed to surpass the OE rotor originally designed for your vehicle. Attention to detail such as removal of all sharp edges, defined radius on opposing sides of venting, and burnished or double face ground finish on friction surface to ensure excellent pad bite from the very first application, are features included in every rotor. As with all Delios disc rotors, a proprietary blend of metals are used to create a wear resistant, noise dampening and thermally stable disc rotor.
All rotors are coated with an environmentally friendly coating called Protekt (TM) which is highly rust resistant and does not contaminate brake pads or trap heat.
Delios Front Brake Upgrade Kit to suit Toyota Hilux Surf / 4Runner 1989-1997 (PAIR)
Suits Models:
1991-1995 Hilux 4WD RN130, LN130, KZN130 4 Runner
Please note - Measurements will need to be checked against what is fitted to your model. Some models will require DLS780

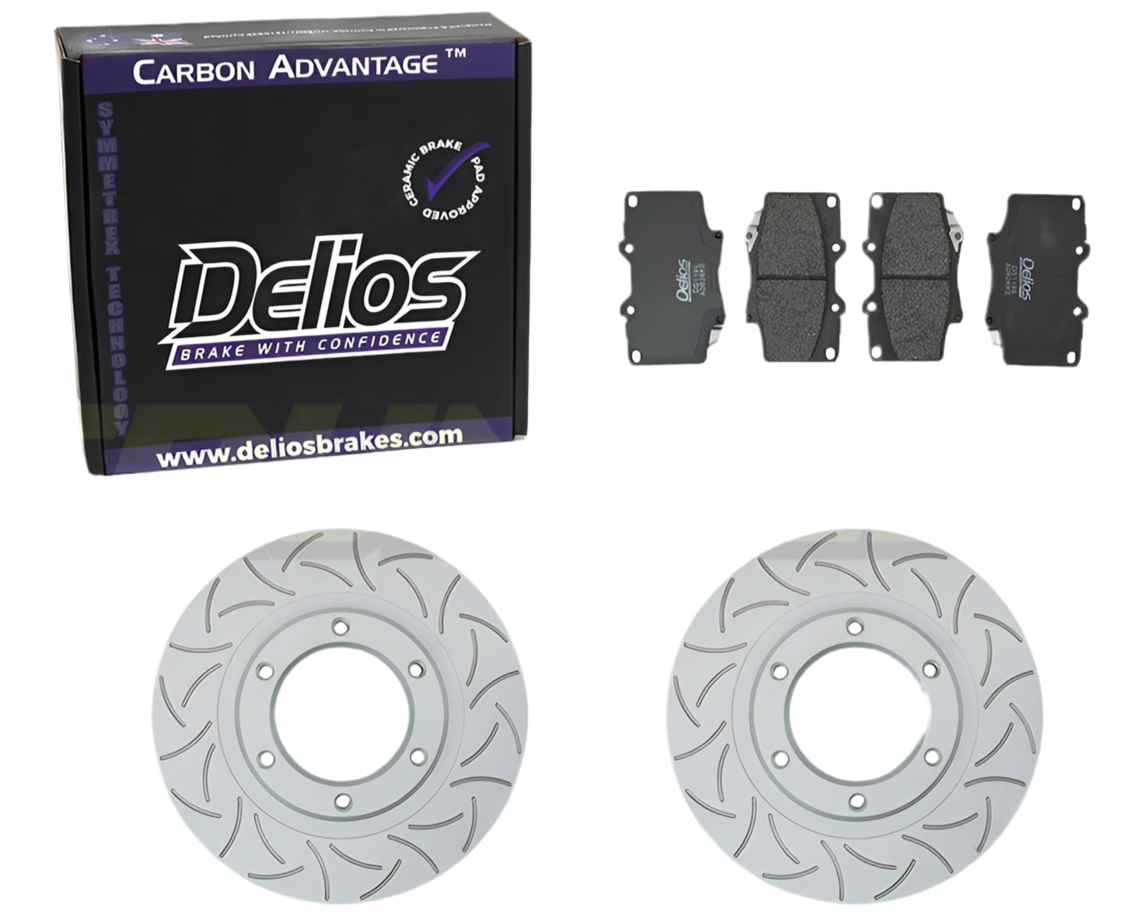

Includes:
1x Delios Front Brake Rotor Pair - DLS775PK
1x Delios Mk3 Brake Pad Set - DS1149MK3
Specifications:
- Diameter (mm): 291
- Height (mm): 68
- Thickness (mm): 25
- Minimum Thickness (mm): 23
- Centre Hole (mm): 100
- Stud Holes: 6
- Vented
More Info:
Delios Rotors prioritize quality, precision and performance, upgrading braking efficiency and quietness for an enhanced drive.
- More Bite: Improved initial brake response for added safety
- Better Release Control: Smooth and controlled brake pedal release
- More Stopping Power: Enhanced stopping performance for safety and efficiency.
- Increased Pedal Response: Responsive pedal for better control
- Increased Corner Speed: Improved agility and handling through enhanced braking
- Endurance and Longevity: Longer-lasting components, reducing replacements
- Noise Reduction: Quieter braking for a peaceful ride
- Easy Pad Bed-In: Streamlined new pad break-in for optimal performance
- Extended Component Life: Enhanced braking that extends the life of suspension and wheel bearings
SPECIFICATIONS
SPECIFICATIONS
| Spec | Detail |
|---|---|
| Rotor Part Number | DLS775PK |
| Diameter | 291mm |
| Height | 68mm |
| Thickness | 25mm |
| Minimum Thickness | 23mm |
| Centre Hole | 100mm |
| Stud Holes | 6 |
| Type | Vented |
| Quantity | Pair |
COMPATIBILITY
COMPATIBILITY
✘ 1st Gen Surf / 4Runner 83 - 88
✔ 2nd Gen Surf / 4Runner 89 - 95
✘ 3rd Gen Surf / 4Runner 96 - 02
✘ 4th Gen Surf / 4Runner 03 - 09
