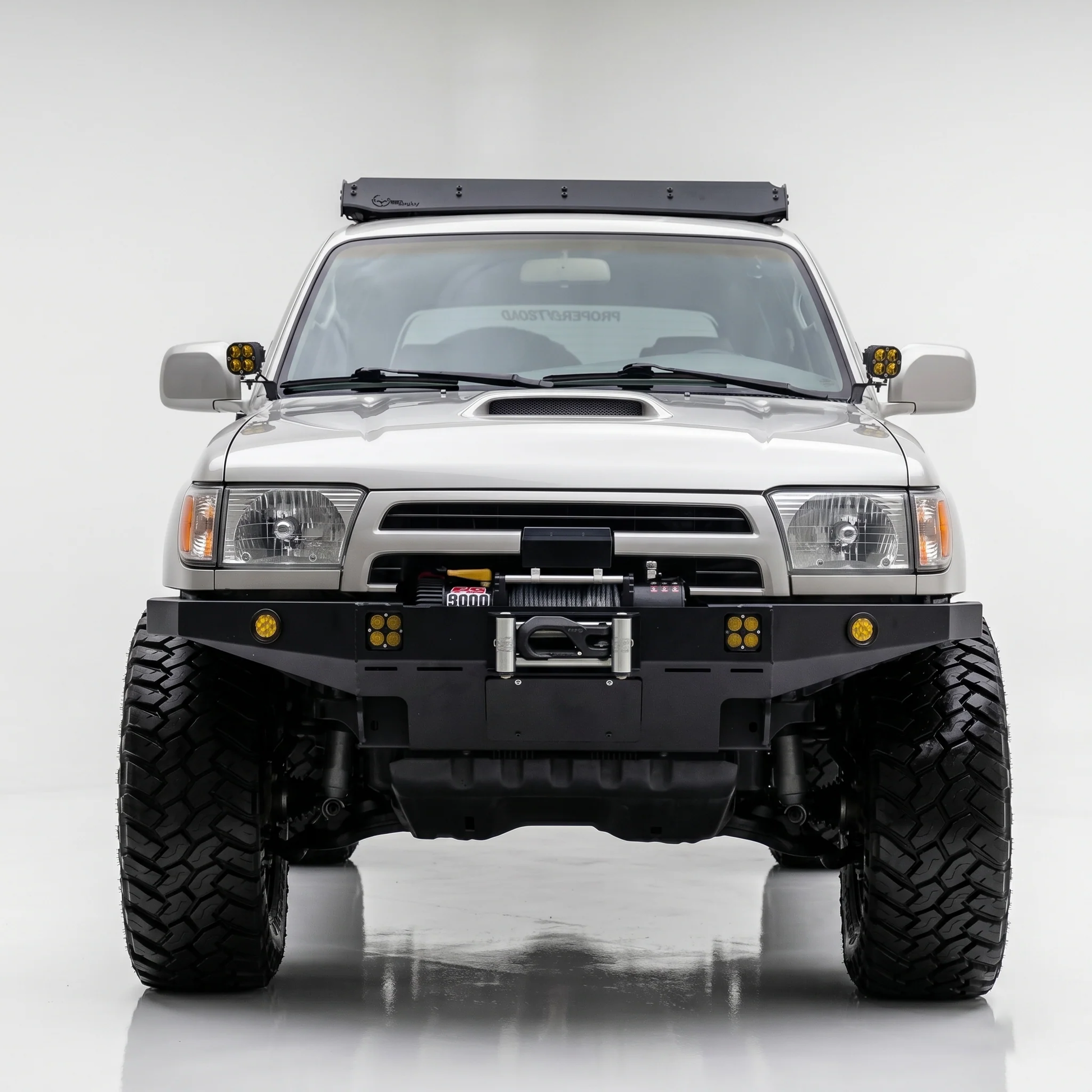

Coastal Offroad High Clearance Front Bumper DIY Kit l 3rd Gen 96 - 02

Introducing Coastal Offroads High Clearance DIY Weld-Together Winch Bumper Kit for the 3rd generation (1996-2002) Toyota Hilux Surf & 4Runner. It features a bolt-on design, protected winch mount, and the best approach angle of any winch bumper on the market! In fact, this bumper protrudes less than 70mm / 2.5" from the centre of the grill! The specific offroad design allows you to forget about approach angle and substantially improves the offroad capability of your vehicle. It offers excellent protection from trail obstacles, animal strikes and distracted drivers and has been kept to a very reasonable weight of 38kg / 84lbs through careful design work.

The profile of this bumper has been designed with maximum ground clearance and approach angles put first. The bumper sits as high and tight to the front of the vehicle as possible, while the angled lower faces will smoothly slide over obstacles and ensure you do not get hung up on the trail. The side wings of this bumper wrap around to the front wheel wells and tie directly into the main frame mounting plates for true offroad protection. These side wings will take a serious hit without flexing or deflecting into the vehicle body. We know that most offroad vehicle owners want to run oversized tires and more aggressive wheel offsets. This can create interference issues with the stock front bumper. We have thought ahead and specifically designed these bumper side wings to easily clear 37" tires.

We finished this bumper off with two integrated light buckets for surface mount LED pod lights, an integrated winch mount to accept all standard 8-12k lb winches with removable solenoids, and heavy duty 9/16" recovery points that are placed directly in line with the 4Runner's frame to eliminate any leveraging effects. These recovery points are formed by laser cut steel plates that pass through the bumper shell and tie directly into the 4Runner's frame as part of the bumper's main mounting brackets. The recovery points then get welded to the inside and outside of the bumper shell. These factors all combine to form recovery points that minimise stress on your vehicles frame and provide reliable recoveries of heavily loaded vehicles in the worst of offroad situations. What could make this bumper even better? The low profile design has resulted in very reasonable weights of 38kg / 84lbs. Considering that this bumper replaces your factory bumper and associated components, the resulting weight increase to your vehicle is surprisingly minimal. This reduces added stress on your vehicle, maintains precious payload capacity, and allows you to keep your factory suspension if desired.

Please note this product is manufactured on demand, so please allow 3-10 business days for items to be made and sent. Once your order has been processed with the manufacturer, the kit is non-refundable so please choose carefully.

• DIY Weld-together kit - This bumper arrives as precision CNC-laser cut pieces that you then weld together (detailed assembly instructions included)

• Low profile design is engineered to provide maximum ground clearance and complement the factory body lines - this bumper protrudes less than 70mm / 2.5" from the centre of the grill!

• Heavy duty 3/16" plate steel construction for maximum offroad strength and durability

• Bolts directly to frame using a total of 8 mounting points

• Protected winch mount fits all standard 8000-12,000lb winches with removable solenoids

• Integrated 9/16" thick clevis mounts allow the use of 3/4" D-Rings and pull directly off of the frame for confident recoveries of heavily loaded vehicles

• Two Integrated LED pod mounts – slotted mounting tabs give tons of adjustment to fit a wide variety of surface mount pod lights

• Integrated license plate mount

• Integrated turn signal cut outs

• Optional heavy duty grill and headlight tubing for added protection

Please note that due to all the different options available, displayed bumpers may differ slightly from those received spending on options selected.
